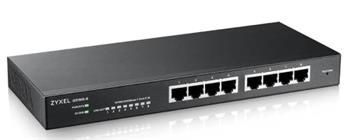

ZyXEL GS1915-8EP,8-port GbE Smart hybrid mode PoE Switch

Popis produktu:

Product name: 8-port GbE Smart Managed PoE Switch

Port Density:
- Total port count: 8
- 100/1000 Mbps:8
PoE:
- 802.3at PoE ports: 8
- Total PoE budget (Watts): 60

Physical Specifications:
- Dimensions (WxDxH)(mm/in.): 250 x 104 x 27/9.84 x 4.09 x 1.06
- Weight (kg/lb.): 0.62/1.37
Included accessories:
- Power cord
- Power adapter
- Wall mount kit

Standard Compliance
- IEEE 802.3 10BASE-T Ethernet*
- IEEE 802.3u 100BASE-TX Ethernet*
- IEEE 802.3ab 1000BASE-T Ethernet*
- IEEE 802.3x flow control
- IEEE 802.3af PoE*
- IEEE 802.3at PoE+*
- IEEE 802.3az EEE support/Green Ethernet
- IEEE 802.1p CoS support*
* Cloud and standalone modes supported features

Resilience and Availability:
- IEEE 802.1D Spanning Tree Protocol (STP)*
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
- IEEE 802.3ad LACP* (max # trunks/links per trunk):
- 8/8EP: 4 groups/8 links per group
- Loop guard*
- Dual configuration files
- Dual images*
* Cloud and standalone modes supported features

Security:
- Layer 2 MAC filtering
- Static MAC forwarding
- SSH v2
- SSL
- Port isolation*
- Port security
- MAC freeze
- CPU protection
- SHA2 HTTPS Certification
- Login authentication by RADIUS
- RADIUS accounting
- Authorization on RADIUS
- Multiple RADIUS servers
DHCP Snooping
* Cloud and standalone modes supported features

Traffic Control:
- 802.1Q Static VLANs: 256*
- Port-based VLAN
- Voice VLAN*
- MAC-based VLAN
- Vendor ID based VLAN*
- VLAN Trunking*
- LACP algorithm of source/destination IP
* Cloud and standalone modes supported features

Quality of Service (QoS):
- 802.1p queuing methods: SPQ, WRR, WFQ
- Storm control: broadcast, multicast, unknown unicast (DLF)*
- Port-based rate limiting (ingress/ egress)*
- 802.3x flow control
- 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
- DiffServ (DSCP)
* Cloud and standalone modes supported features

Layer 2 Multicast:
- L2 Multicast*
- Static L2 Multicast Forwarding
- IGMP snooping (v1, v2, v3)*
* Cloud and standalone modes supported features

Manageability:
- SNMP v1*, v2c*, v3
- SNMP trap group
- RMON (1, 2, 3, 9)
- ICMP echo/echo reply
- Syslog*
- Display port utilization*
- IEEE 802.1AB LLDP
- IEEE 802.1AB LLDP-MED
- Custom default
Support NebulaFlex for Cloud Management
* Cloud and standalone modes supported features

IPv6 Management:
- IPv6 over Ethernet (RFC 2464)
- IPv6 addressing architecture (RFC 4291)
- Dual stack (RFC4213)
- ICMPv6 (RFC4884)
- Path MTU (RFC 1981)
- Minimum Path MTU size of 1280 (RFC 5905)
- Encapsulation for maximum PMTU size of 1500
- Neighbor Discovery (RFC4861)

Device Management:
- Standalone management by Web interface
- Cloud management by Nebula Control Center*
- Setup Wizard
- Management through Web, SNMP
- Remote firmware upgrade by FTP/Web
- Configuration saving and retrieving
- DHCP client*
- DHCP relay per VLAN
- Daylight saving*
- NTP (IPv4/IPv6)
- Port mirroring*
- Schedule PoE*
- PoE default consumption mode*
* Cloud and standalone modes supported features

MIB:
- Zyxel private common MIB
- RFC 1066 TCP/IP-based MIB
- RFC 1213, 1157 SNMPv2c/v3 MIB
- RFC 1493 bridge MIB
- RFC 1643 Ethernet MIB
- RFC 1757 RMON group 1, 2, 3, 9
- RFC 2011, 2012, 2013 SNMPv2 MIB
- RFC 2233 SMIv2 MIB
- RFC 2358 Ethernet-like MIB
- RFC 2674 bridge MIB extension
- RFC 2819, 2925 Remote Management MIB
- RFC 3621 Power Ethernet MIB
- RFC 4293 Management Information Base (MIB) for IP
- RFC 4292 IP forwarding table MIB
- RFC 4022 management information base for transmission control protocol
- RFC 4113 management information base for user datagram protocol
