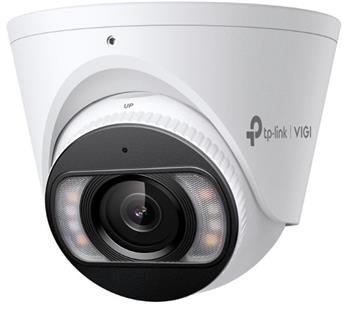

TP-Link VIGI C455(2.8mm)

Popis produktu:

Kovová VIGI 5MPx plnobarevná Turret síťová kamera
•5MPx Super vysoké rozlišení and 24h Full-Color
•Analýza osob a vozidel
•Rozlišení osob a vozidel
•Chytrá detekce
•Technologie inteligentního vylepšení videa
•Aktivní obrana a obousměrný zvuk
•Vodotěsnost IP67
•Kompresní technologie H.265+

CAMERA
Image Sensor - 1/2.7” Progressive Scan CMOS
Shutter Speed - 1/3 to 1/10000 s
Slow Shutter
Minimum Illumination - 0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism - IR Cut Filter
Day/Night Switch - Unified/ Scheduled/ Auto

LENS
Type - Fixed Focal Lens
Focal Length - 2.8/4 mm
Aperture - F1.6
FOV
2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°
4 mm:
Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Lens Mount M12*P 0.5
DORI Distance
2.8 mm:
Detect: 64 m (210 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 6 m (20 ft)
4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (108 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

Angle Adjustment (Manual)
Range Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°

ILLUMINATOR
IR LED
Quantity: 4
Range: 30m
Wavelength: 850nm
White LED
Quantity: 4
Range: 30m
Illuminator On/Off Control - Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution - 3840 X 2160
Main Stream
•Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
•Resolution:
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720
•Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.
Sub-Stream
•Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
•Resolution:
704x576,640x480, 352x288, 320x240
•Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.
Bit Rate Control - CBR, VBR
Video Compression:
•Main Stream: H.265+/H.265/H.264+/H.264
•Sub-Stream: H.265/H.264
H.264 Type - High Profile
H.264+ - Main Stream Supported
H.265 Type  -Main Profile
H.265+  -Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps

Image Settings • Mirror • Brightness • Contras t• Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software
Image Enhancement - BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range - 120 dB
SNR - 52 dB
Image Parameters Switch
Privacy Mask - Up to 4 Masks
ROI - 1 Region
OSD Setting

AUDIO
Audio Communication - Two-Way Audio
Audio Input
Audio Output
Audio Compression
Audio Sampling Rate - 8KHz
Environment Noise Filtering
Audio Bit Rate  - 64 Kbps(G.711 alaw)

NETWORK
Protocol - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF
API - Open Network Video Interface (Profile S)
Simultaneous Live View - 3 Main Streams & 3 Sub-Streams
Client - VIGI App, VIGI Security Manager, Web UI, VIGI VMS
Web Browser - Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud
Security - Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • Smart Frame • People Detection • Vehicle Detection
Basic Event • Motion Detection • Video Tampering Detection • Exception ( Illegal Login) • Scene Change Detection
Alarm Linkage • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing
Output Notification - Message Push

GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)

Package Contents:
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories

Material Metal
Net Weight  0.48 Kg
Power Supply  12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12.5 W
Protection  IP67
Product Dimensions   111 × 111 × 83.7 mm
Certifications  CE, NTRA, VCCI, KC, BSMI, FCC, IC
