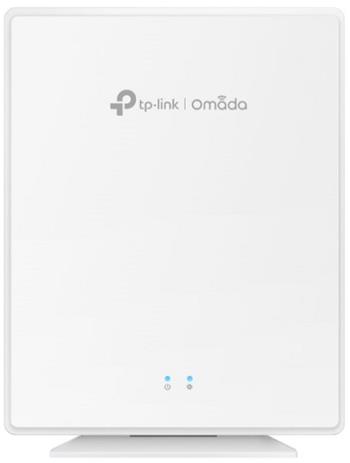

TP-Link EAP650-Desktop Wi-Fi 6 Access Point

Popis produktu:

Omada AX3000 Wi-Fi 6 Desktop přístupový bod
•Bleskově rychlé rychlosti AX3000 Wi-Fi 6: 574 Mb/s na 2,4 GHz a 2402 Mb/s na 5 GHz, což celkem činí 2976 Mb/s WiFi rychlostí.
•Více gigabitových portů: Připojte více zařízení pomocí 4× Gigabit Ethernet portů.
•Pohodlné nasazení: Podporuje jak 802.3bt PoE++, tak DC (adaptér je součástí balení) pro snadné a rychlé nasazení.
•Bez nutnosti instalace: Podporuje stolní instalaci bez potřeby dalšího nastavení.
•Vysoká flexibilita: Poskytuje flexibilní možnosti instalace pro stolní i nástěnnou montáž.
•Pokročilé funkce: Omada Mesh, bezproblémové roaming, centralizovaná správa v cloudu.

HARDWARE FEATURES
Interface -4× 1Gbps Ethernet Ports + 1× FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
Button
• Reset
• LED
Power Supply - 802.3 af/at/bt PoE or 12V/1.5A DC, PoE Out requires 802.3at/bt PoE power supply
Power Consumption - 17.3W (PoE Out Off)
Weight - 452g (excluding mounting base)
Dimensions - 175 × 140 × 33 mm
Antenna Type: Internal Omni
• 2.4 GHz: 2× 5 dBi
• 5 GHz: 3× 4.7 dBi
Range - 140(1500 ft2)
Mounting Desktop / Wall mouting (Kits included)

WIRELESS FEATURES
Concurrent Clients - 250+
Wireless Standards - IEEE 802.11 a/b/g/n/ac/ax
Frequency - 2.4 GHz and 5 GHz

Signal Rate
• 5 GHz: 2402 Mbps†
• 2.4 GHz: 574 Mbps

Wireless Functions
• 2×2 (2.4G & 5G) MU-MIMO
• HE160 (160 MHz Bandwidth)
• OFDMA
• Omada Mesh
• Seamless Roaming §
• Multiple SSIDs (16 SSIDs, 8 on each band)
• Enable/Disable SSID Broadcast
• Enable/Disable Wireless Radio
• Guest Network
• Automatic Channel Assignment
• Beamforming
• Rate Limit (Based on SSID/Client)
• Band Steering
• Load Balance
• Airtime Fairness
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule and Statistics
• Static IP/Dynamic IP

Wireless Security
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<29 dBm(5 GHz, band3, EIRP)
• FCC:
<26 dBm (2.4 GHz)
<27 dBm (5 GHz)

MANAGEMENT
Omada App
Centralized Management
• Omada Hardware Controller
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP - v1, v2c, v3
System Logging Local/Remote Syslog - System Log
SSH
Web-based Management
Zero-Touch Provisioning - .Reauire the use of Omada Cloud-Based controller

OTHERS
Certification - CE, FCC, RoHS, IC

Package Contents
• EAP650-Desktop
• Desktop/Wall Mounting Kit
• Installation Guide

Environment
• Operating Temperature: 0–40 C
• Storage Temperature: -40–70 C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

System Requirements - Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
