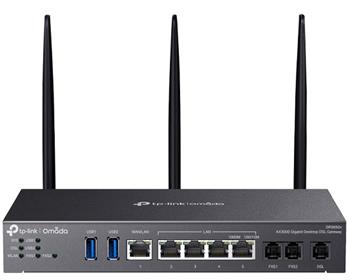

TP-Link DR3650V

Popis produktu:

•AX3000 Wi-Fi 6 s 2402 Mb/s na 5 GHz a 574 Mb/s na 2.4 GHz
•VDSL2 35b: Podpora DSL připojení až 350 Mb/s
•Kompatibilita s VDSL2/ADSL2+/ADSL2/ADSL
•Centralizovaná správa v cloudu
•IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
•Vyvažování zátěže mezi DSL a Ethernet WAN
•Technologie Omada Mesh
•3 × RJ11 porty (2 × FXS, 1 × DSL) a 5 × RJ45 gigabitové porty a 2 × USB 3.0 porty
•Možnost umístění na stůl nebo montáž na zeď

SECURITY
Access Control: Source/Destination IP Based Access Control
Filtering: Web Group Filtering,  URL Filtering, Web Security
ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding
Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN

Interface:
3 × RJ11 Ports (2 × FXS, 1 × DSL),
5 × RJ45 Gigabit Ports (1 × WAN/LAN Port, 4 × LAN Ports)
2 × USB 3.0 Ports
Reset Button
Power Supply: 12VDC / 3.3A Power Adapter
Wi-Fi Frequency & Signal Rate: 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160)
Flash: 256 MB NAND
DRAM: 512 MB DDR4
Dimensions ( W x D x H) 226 × 131 × 35 mm)
Antenna
• 2.4 GHz: 2x 3 dBi dual-band detachable antennas
• 5 GHz: 3x 4.5 dBi dual-band detachable antennas
Mounting: Desktop/Wall-mounting/Rackmount (with Kit-D226, sold separately)
Max. Power Consumption: 30.6W(with 2 USB 3.0 connect), 20.6W(without 2 USB 3.0 connect)

PERFORMANCE
GRE: Unencrypted: 624.2Mbps,  Encrypted: 301.5Mbps
WireGuard VPN: 393.5Mbps
Concurrent Session: 150,000
New Sessions /Second: 5,100
NAT (Static IP) 937.2 Mbps / 936.1Mbps
NAT(DHCP) 945.8 Mbps / 940.6Mbps
NAT(PPPoE) 942.9 Mbps / 942.9Mbps
NAT (L2TP) 837.4 Mbps / 881.5Mbps
NAT (PPTP) 803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput
• ESP-SHA1-AES256: 646.9Mbps
• ESP-SHA256-AES256: 642.8Mbps
• ESP-SHA384-AES256: 648.9Mbps
• ESP-SHA512-AES256: 658.4 Mbps
OpenVPN: 129.3Mbps
L2TP VPN Throughput: Unencrypted: 1034.0 Mbps,  Encrypted: 570.0 Mbps
PPTP VPN Throughput:  Unencrypted: 1165.0 Mbps, Encrypted: 209.0 Mbps
SSL VPN Throughput: 126.7Mbps
66 Byte Packet Forwarding Rate: 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate: 81,274 pps / 91,275 pps

WIRELESS FEATURES
Advanced Features
Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
MU-MIMO
Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest Networ: Support

BASIC FUNCTIONS
WAN Connection Type
Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP
MAC Clone: Modify WAN Address
DHCP
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing: Static Routing, Policy Routing, RIP,  OSPF
Bandwidth Control: IP-Based Bandwidth Control
Load Balance:  Intelligent Load Balance, Application Optimized Routing, Link Backup(Timing, Failover), Online Detection
NAT: One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Session Limit: IP-Based Session Limit

VPN
SSL VPN: 50 Tunnels
WireGuard VPN: 20 Tunnels

IPsec VPN:
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

PPTP VPN:
PPTP VPN Server
PPTP VPN Client (10)*6
50 Tunnels
PPTP with MPPE Encryption

L2TP VPN:
L2TP VPN Server
L2TP VPN Client (10)*6
50 Tunnels
L2TP over IPSec

OpenVPN:
OpenVPN Server
OpenVPN Client (5)*6
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode

Web Authentication
No Authentication
Simple Password*6
Hotspot (Local User / Voucher / SMS Radius)
External Radius Sever
External Portal Sever*6
LDAP

Management Features
Omada App
Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access: Require the use of Omada Cloud-Based Controller.
Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance:
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)*5
NTP Synchronize*5
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
TR-069 (data models of TR-098 and TR181 are supported)
Zero-Touch Provisioning: Require the use of Omada Cloud-Based Controller.
Management Features:
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

OTHERS
Certification: CE, RoHS

Package Content
DR3650v
Power Adapter
Ethernet Cable
Phone Cable
Quick Installation Guide

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment:
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -40 °C to 70 °C
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
