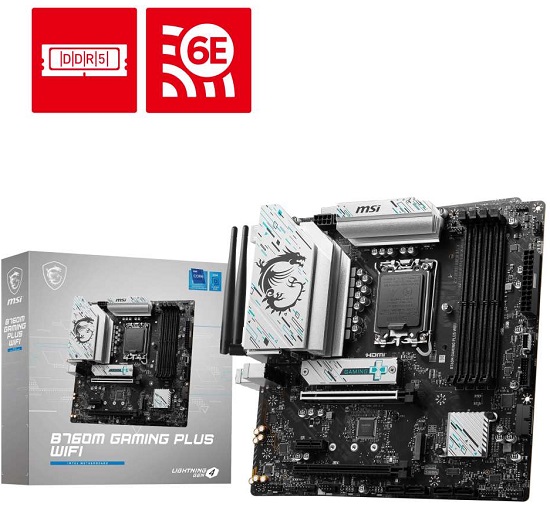

MSI B760M GAMING PLUS WIFI

Popis produktu:

MSI MB Sc LGA1700 B760M GAMING PLUS WIFI, Intel B760, 4xDDR5, 2xDP, 2x HDMI, mATX

CHIPSET - INTEL B760

CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

MEMORY
4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS
2x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
-Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
-SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)

LAN
Realtek® RTL8125BG 2.5G LAN

WIRELESS LAN & BLUETOOTH
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
-Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio

INTERNAL IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports

LED FEATURE
4x EZ Debug LED

BACK PANEL PORTS
Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
Audio Connectors

OPERATING SYST - Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFO - mATX 243.84mmx243.84mm

BOX CONTENT
I/O Shield
Sata Cable
2x M.2 Screw/standolf Sets
WIFI antena
