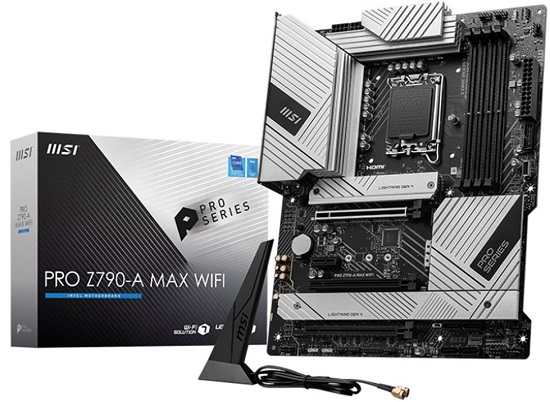

MSI PRO Z790-A MAX WIFI

Popis produktu:

CHIPSET  INTEL Z790
CPU  Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700

MEMORY
4x DDR5 UDIMM, Maximum Memory Capacity 192GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS
1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN Intel® 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

AUDIO
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output

INTERNAL IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)

LED FEATURE 4x EZ Debug LED
OPERATING SYSTEM  Support for Windows® 11 64-bit
PCB INFO   ATX 243.84mmx304.8mm
