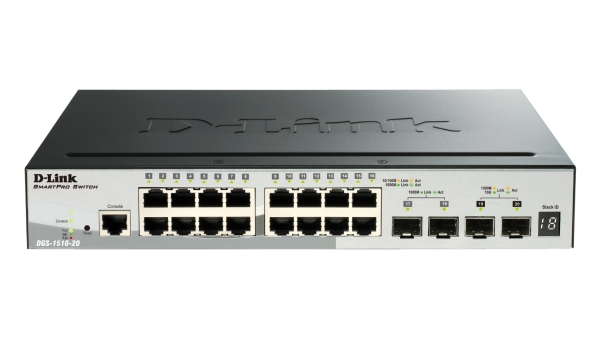

D-Link DGS-1510-20

Popis produktu:

Port Standards & Functions
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE,
IEEE 802.3x Flow Control for Full-Duplex Mode,
Auto-negotiation

Number of Ports 16 10/100/1000 Mbps, 2 Gigabit SFP, 2 10G SFP+
Network Cables UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange Auto or configurable MDI/MDIX

PERFORMANCE
Switching Capacity 76 Gbps
Transmission Method Store-and-forward
MAC Address Table 16,000 entries per device

MAC Address Update
Up to 512 static MAC entries,
Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate 56.54 Mpps
Packet Buffer Memory 1.5 MB per device

PHYSICAL & ENVIRONMENTAL
AC Input
100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption 20.3 W
Standby Power Consumption 12.2 W
Smart Fan Quantity 1
Acoustics 43.8 dB(A)
Heat Dissipation 41.602 BTU/hr
Operation Temperature -5 to 50 °C
Storage Temperature -20 to 70°C
Operation Humidity 0% to 95% non-condensing
Storage Humidity 0% to 95% non-condensing

Dimensions
280 x 180 x 44 mm
19” standard rack mounting width, 1U height
Weight  1.24 kg
