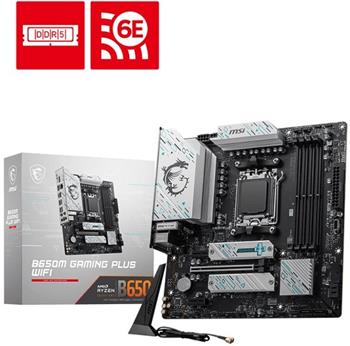

MSI B650M GAMING PLUS WIFI

Popis produktu:

MSI MB Sc AM5 B650M GAMING PLUS WIFI, AMD B650, 4xDDR5, 1xDP, 1x HDMI, mATX

CHIPSET  AMD B650

CPU Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

MEMORY
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

ONBOARD GRAPHICS
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
-Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT
1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed

RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices

USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)

LAN - Realtek® RTL8125BG 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
-Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
 Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio

INTERNAL IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

LED FEATURE - 4x EZ Debug LED

BACK PANEL PORTS
DisplayPort
2.5G LAN
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Flash BIOS Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
Audio connectors

OPERATING SYSTEM - Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFO - mATX - 243.84mmx243.84mm

BOX CONTENT
Sata Cable
2x EZ M.2 Clip
WIFI antena
