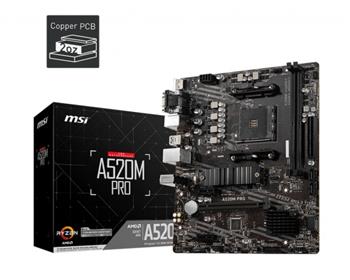

MSI A520M PRO

Popis produktu:

CPU
Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors

Chipset
AMD A520 Chipset

Memory
2x DDR4 memory slots, support up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

Expansion Slot
1x PCIe x16 slot (PCI_E2)
2x PCIe 3.0 x1 slots
The supported specification depends on installed processor.

Onboard Graphics
1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1x HDMI2.1, supports a maximum resolution of 4096x2160@60Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Maximum shared memory of 2048 MB
Graphics specifications may vary depending on the CPU installed
Available for the processor with integrated graphics.

Storage
AMD A520 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
M2_1 slot (from AMD Processor)
Supports PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
The supported specification depends on installed processor.

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB
AMD A520 Chipset
2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio
Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN
1x Realtek® RTL8111H LAN controller

Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x Serial port connector
1x M.2 slot (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
1x TPM module connector
1x Clear CMOS jumper

Back panel ports
VGA
Keyboard / Mouse
LAN port
HDMI
DisplayPort
USB 2.0 Ports
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
Audio Connectors

Dimensions
M-ATX Form Factor
9.6 in. x 8.3 in. (24.4 cm x 21 cm)
