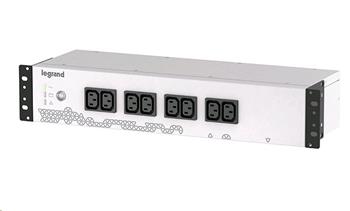

LEGRAND UPS Keor PDU 800VA/480W IEC, Off-Line, Rack 2U, výstup 8x IEC C13, USB

Popis produktu:

Keor PDU is a new UPS specifically designed for installation in 19-inch panels and racks.
Its PDU style design with ultra compact dimensions provides 8 sockets with up to 15 minute autonomy in just 2 rack units.

Characteristics
3 LEDs to monitor UPS status in real-time
Low energy consumption
Economically advantageous solution
More sockets with complete protection
Front installation and maintenance
Silent operations
Less space occupied inside the cabinet
Lower installation weight
Wiring and installation simplicity

Model KEOR PDU 800
General features:
Nominal power (VA) 800
Active power (W) 480
Technology Off-Line VFD
Waveform Simulated sinewave

Input:
Input Socket 1 IEC 10A
Nominal voltage (V) 230
Voltage range (V) 180 - 270
Frequency (Hz) 50 - 60 } 5Hz

Output:
Outlets type: - IEC Version - Backup: 8*C13
Voltage (V) 230 } 10%
Frequency (Hz) 50 - 60 } 1Hz

Protections:
Full protection Deep Discharge, Over-Load and Short-Circuit Protection
Type Fuse

Batteries:
Number of batteries 1
Battery series Type / Voltage VRLA 9 Ah

Communication and Management:
Interface LED bar (green / orange / red)
USB HID Type B Alarms Visual (LED bar), Audible (buzzer)

Mechanical Features:
Measurements W x D x H (mm) 19" x 150mm x 2U
Net Weight (kg) 5,5

Environmental Conditions:
Operating temperature (‹C) 0 . 40
Relative humidity (%) < 95 (without condensing)
Noise level (dB) . 40

Certifications:
Standards and marks EN 62040-1, EN 62040-2, CE

Stránky o produkte:

https://ups.legrand.com/en/products/keor-pdu
