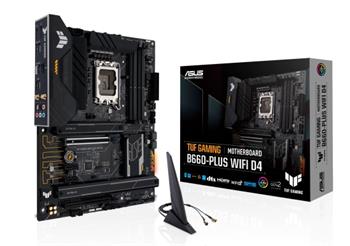

ASUS TUF GAMING B660-PLUS WIFI D4

Popis produktu:

CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to www.asus.com for CPU support list.
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® B660 Chipset

Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics
1 x DisplayPort
1 x HDMI® port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot(s)
Intel® B660 Chipset*
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B660 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

Ethernet
1 x Intel® 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

USB
Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 port (3 x Type-A)
1 x USB 2.0 port(s) (1 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support additional 4 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Rear optical S/PDIF out port
Premium audio capacitors
Audio cover

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 port (3 x Type-A)
1 x USB 2.0 port(s) (1 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan header
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 2 connector (support USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header support additional 4 USB 2.0 ports
3 x Addressable Gen 2 header
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header

Special Features
ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
TUF LANGuard
Overvoltage Protection
Safeslot
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeDIMM
AURA Sync
AURA RGB header(s)
Addressable Gen 2 header(s)

Software Features
ASUS Exclusive Software
Armoury Crate
AURA Creator
AURA Sync
Fan Xpert 4
Two-Way AI Noise Cancelation
AI Suite 3
Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

Operating System
Windows® 11 64-bit, Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
