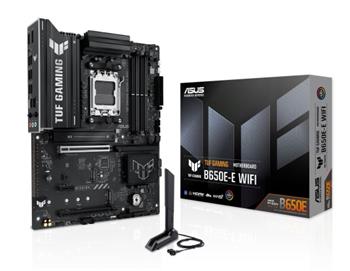

ASUS TUF GAMING B650E-E WIFI

Popis produktu:

ASUS TUF GAMING B650E-E WIFI přebírá všechny základní prvky nejnovějších procesorů AMD a kombinuje je s funkcemi připravenými ke hře s ověřenou odolností.
Tato základní deska, navržená s komponentami vojenské kvality, vylepšeným řešením napájení a komplexním systémem chlazenía stabilním výkonem.

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset - AMD B650 Chipset

Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory
Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x DisplayPort
1 x HDMI™ port
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports max. 8K@30Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x1 mode)
1 x PCIe 4.0 x1 slot
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Specifications vary by CPU types.
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3
WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB
Rear USB (Total 8 ports)
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
3 x USB 5Gbps ports (3 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A.

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
Audio cover
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output

Back Panel I/O Ports
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
3 x USB 5Gbps ports (3 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header

Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
-Two-Way Al Noise cancelation
Al Suite 3
-TurboV EVO
-DIGI+ VRM
-PC Cleaner
ASUS DriverHub
TUF GAMING CPU-Z
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
•ASUS CrashFree BIOS 3
•ASUS EZ Flash 3
•ASUS UEFI BIOS EZ Mode

BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
Manageability - WOL by PME, PXE
Operating System - Windows 11, Windows 10 64-bit

Accessories
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x TUF Gaming sticker
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
1 x Quick start guide

ATX Form Factor - 30.5 cm x 24.4 cm
