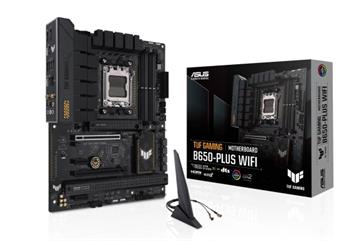

ASUS TUF GAMING B650-PLUS WIFI

Popis produktu:

CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series

Chipset
AMD B650

Memory
4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics
1 x DisplayPort
1 x HDMI® port
Supports max. 8K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot(s)
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 4.0/3.0 x1 slots
Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type
2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.

Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Power pre-regulator reduces power input noise to ensure consistent performance
Premium audio capacitors
Dedicated audio PCB layers
Audio cover
Unique de-pop circuit
Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan header
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 connector (support USB Type-C® )
1 x USB 3.2 Gen 1 header support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header support 4 additional USB 2.0 ports
3 x Addressable Gen 2 header
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header

Special Features
ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
TUF LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Pre-mounted I/O shield
SafeDIMM
Aura Sync
Aura RGB header(s)
Addressable Gen 2 header(s)

Software Features
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 4
Power Saving
Two-Way AI Noise Cancellation
AI Suite 3
TurboV EVO
DIGI+ VRM
PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

Operating System
Windows® 11
Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
