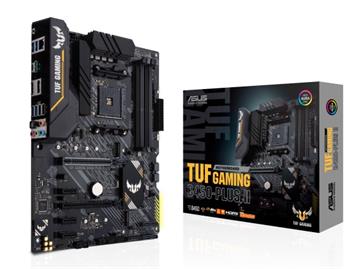

ASUS TUF GAMING B450-PLUS II

Popis produktu:

CPU
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors

Chipset
AMD B450

Memory
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
1 x DisplayPort 1.2
1 x HDMI 2.0b
Graphics specifications may vary between CPU types.

Multi-GPU Support
Supports AMD CrossFireX™ Technology

Expansion Slots
3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1

Storage
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
2 x SATA 6Gb/s port
Support Raid 0, 1, 10
AMD B450 chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)
4 x SATA 6Gb/s port
Support Raid 0, 1, 10

LAN
Realtek® L8200A
TUF LANGuard

Audio
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC

Audio Feature :
Exclusive DTS Custom for GAMING Headsets.
Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

USB Ports
Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)

Special Features
ASUS TUF PROTECTION
ASUS SafeSlot: Protect your graphics card Investment
ASUS Overvoltage Protection: World-class circuit-protecting power design
ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
ASUS DIGI+ VRM: Precision control for stable power
ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
AURA :
Aura Lighting Control
Aura RGB Strip Headers
ASUS Exclusive Features :
AI Suite 3
Ai Charger
Turbo LAN
PC Cleaner
Armoury Crate
BIOS FlashBack™ Button
ASUS Quiet Thermal Solution :
Stylish Fanless Design Heat-sink solution & MOS Heatsink
ASUS Fan Xpert 4 Core
ASUS EZ DIY :
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS USB BIOS FlashBack™
ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
ASUS Q-Slot
ASUS Q-DIMM
Armoury Crate

Software Features
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
AI Noise-Canceling Microphone
AI Suite 3
Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4 core
EZ update
PC Cleaner
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS TUF PROTECTION
ASUS DIGI+ VRM
ASUS Enhanced DRAM Overcurrent Protection
ASUS ESD Guards
TUF LANGuard
ASUS Overvoltage Protection
ASUS SafeSlot
ASUS Stainless-Steel Back I/O
ASUS Q-Design
ASUS Q-DIMM
ASUS Q-Slot
ASUS Thermal Solution
Aluminum heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
AURA Sync
AURA RGB headers

Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port
2 x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
5 x Audio jack(s)
1 x BIOS FlashBack™ Button

Internal I/O Ports
1 x CPU Fan connector (1 x 4 -pin)
3 x Chassis Fan connector (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
2 x Aura RGB Strip Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector support additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
1 x SPI TPM header
6 x SATA 6Gb/s connector
1 x 24-pin EATX Power connector
1 x 8-pin ATX 12V Power connector
1 x Front panel audio connector (AAFP)
1 x System panel
1 x Clear CMOS jumper
1 x COM port header

Operating System
Windows® 10 64-bit
Windows® 7 64-bit

Form Factor
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
