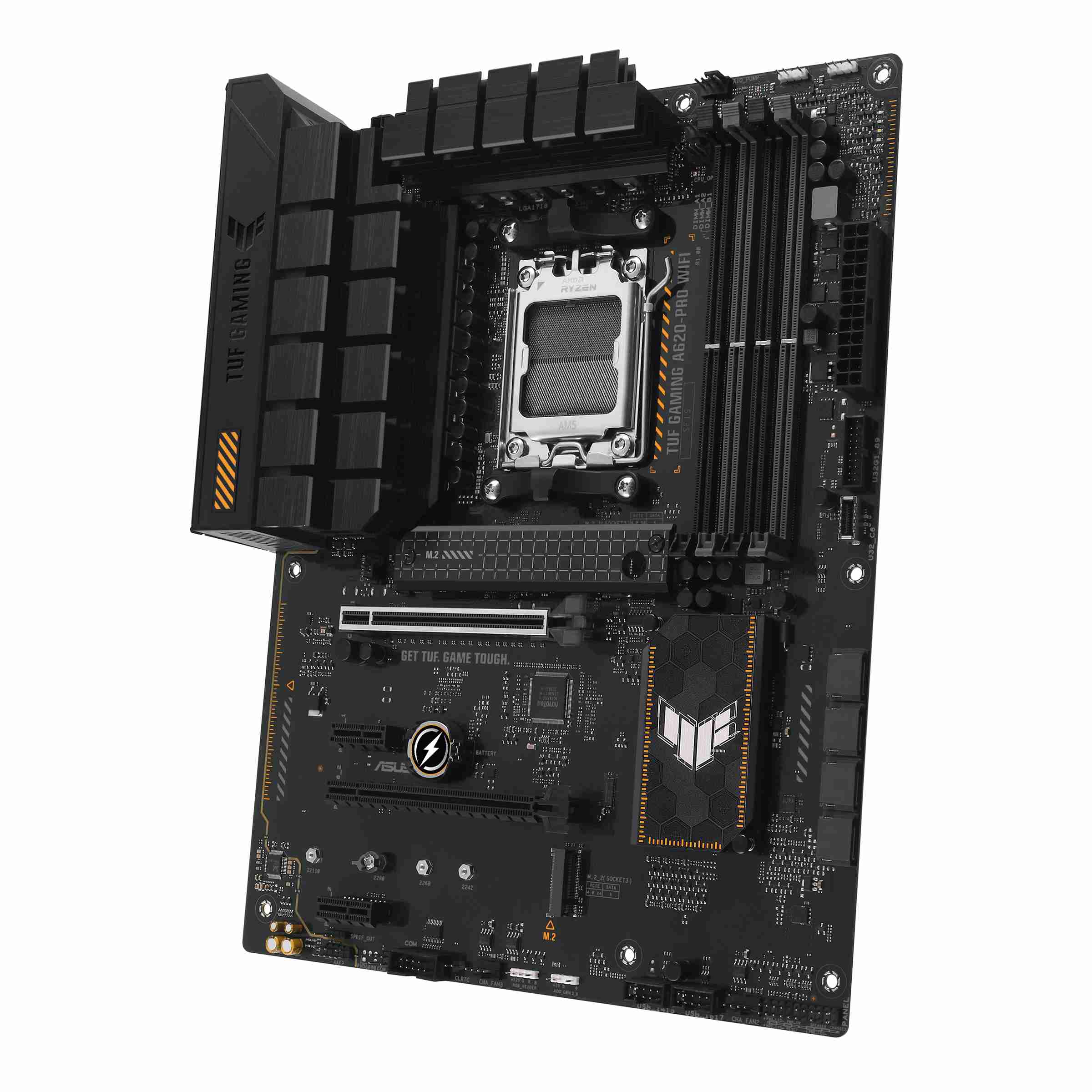

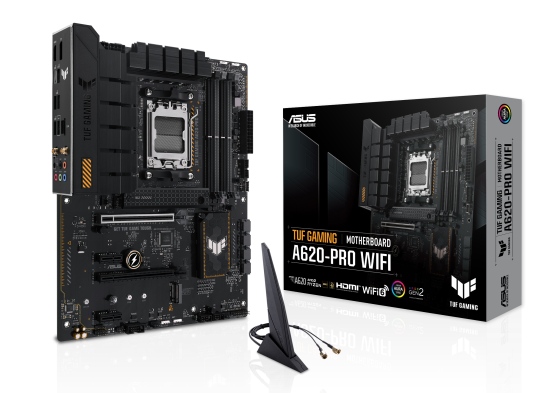

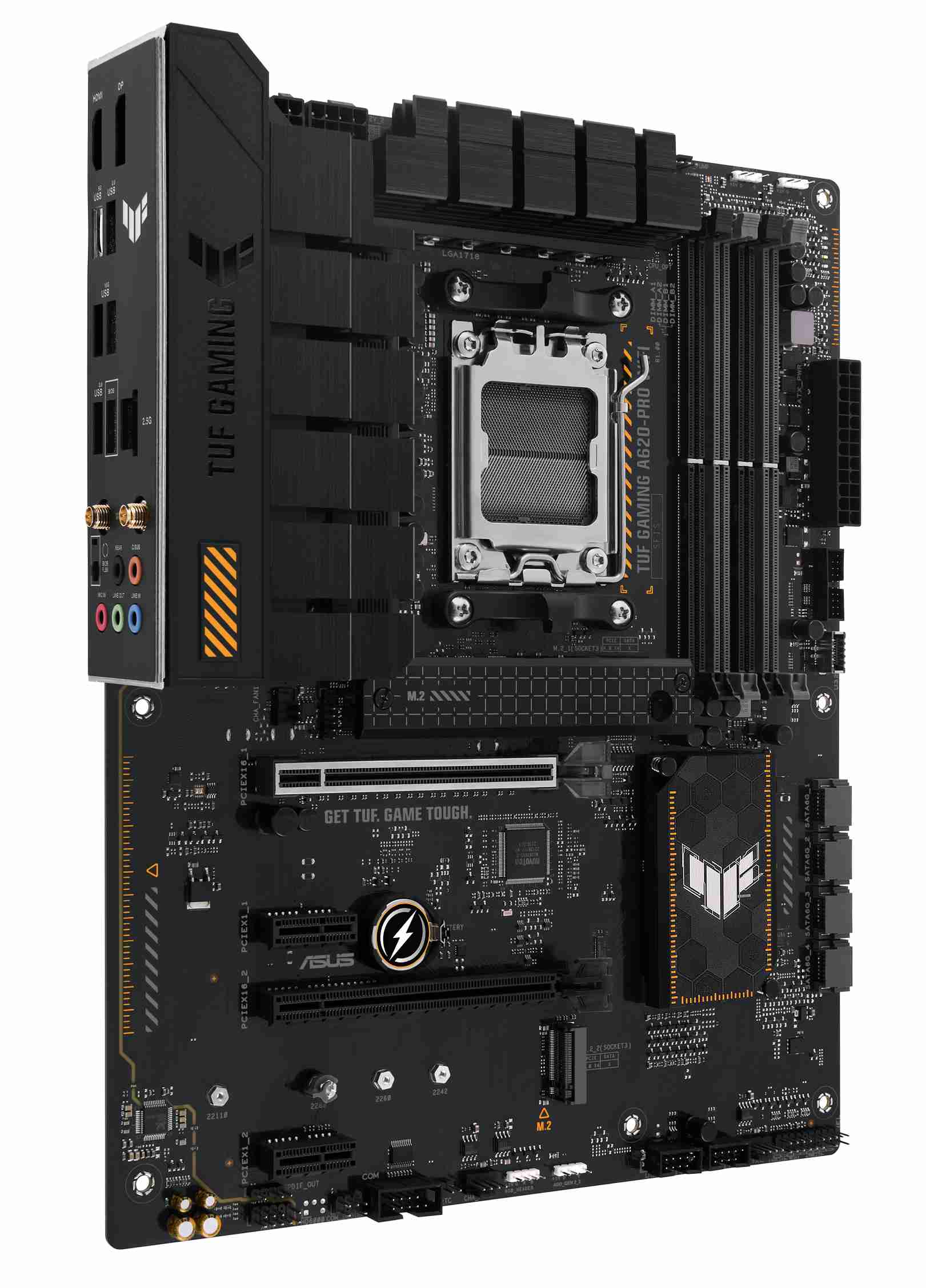

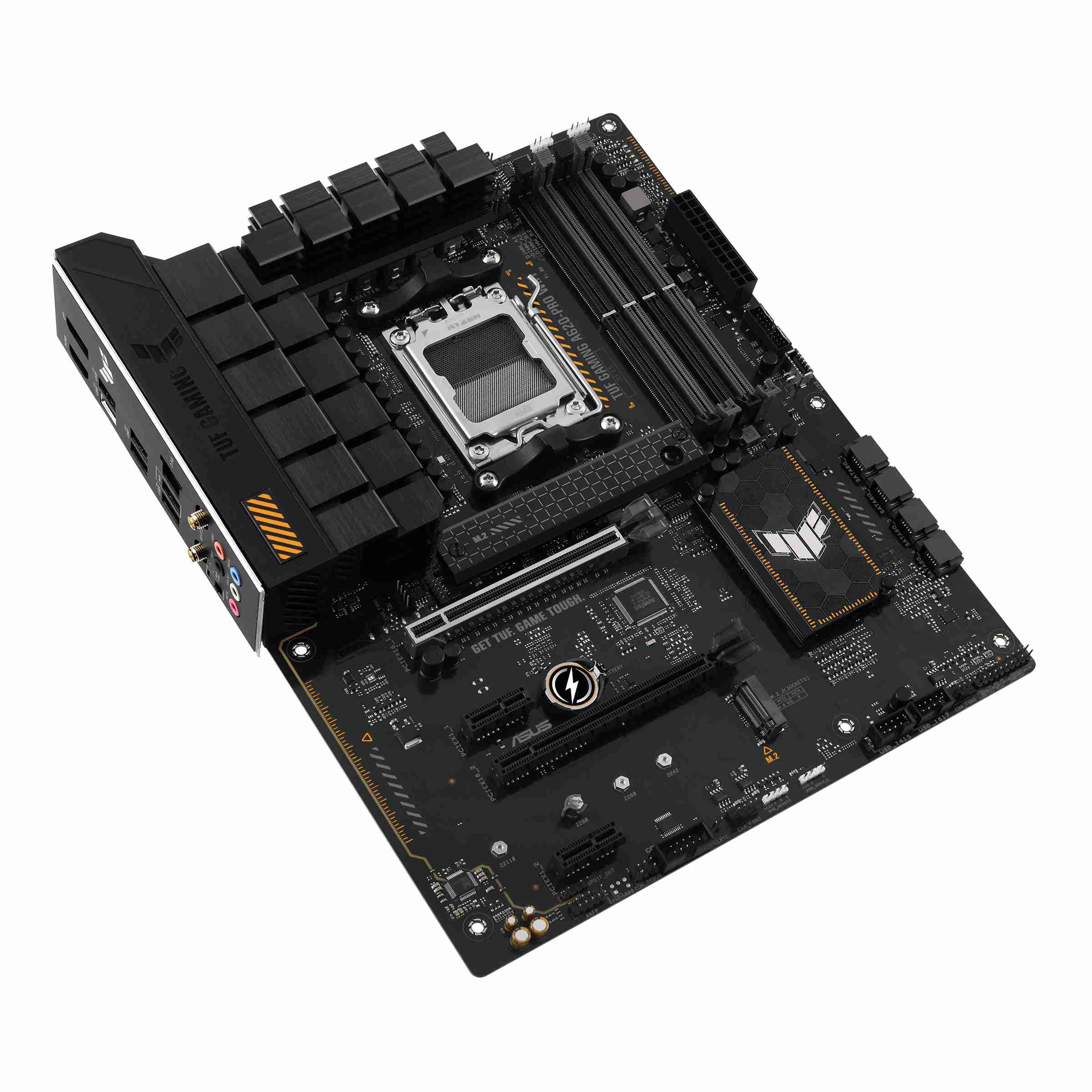

ASUS TUF GAMING A620-PRO WIFI

Popis produktu:

CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Refer to www.asus.com for CPU support list.

Chipset
AMD A620 Chipset

Memory
4 x DIMM slots, Max. 192GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics
1 x DisplayPort**
1 x HDMI™ port***
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports max. 8K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD A620 Chipset
1 x PCIe 3.0 x16 slot (supports x2 mode)
2 x PCIe 3.0 x1 slots
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
PCIEX16_2 slot will be disabled when either of the PCIEX1 slots is populated.
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD A620 Chipset
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6
1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3

USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
1 x USB 3.2 Gen 1 (5G) port (1 x USB Type-C®)
3 x USB 2.0 ports (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers

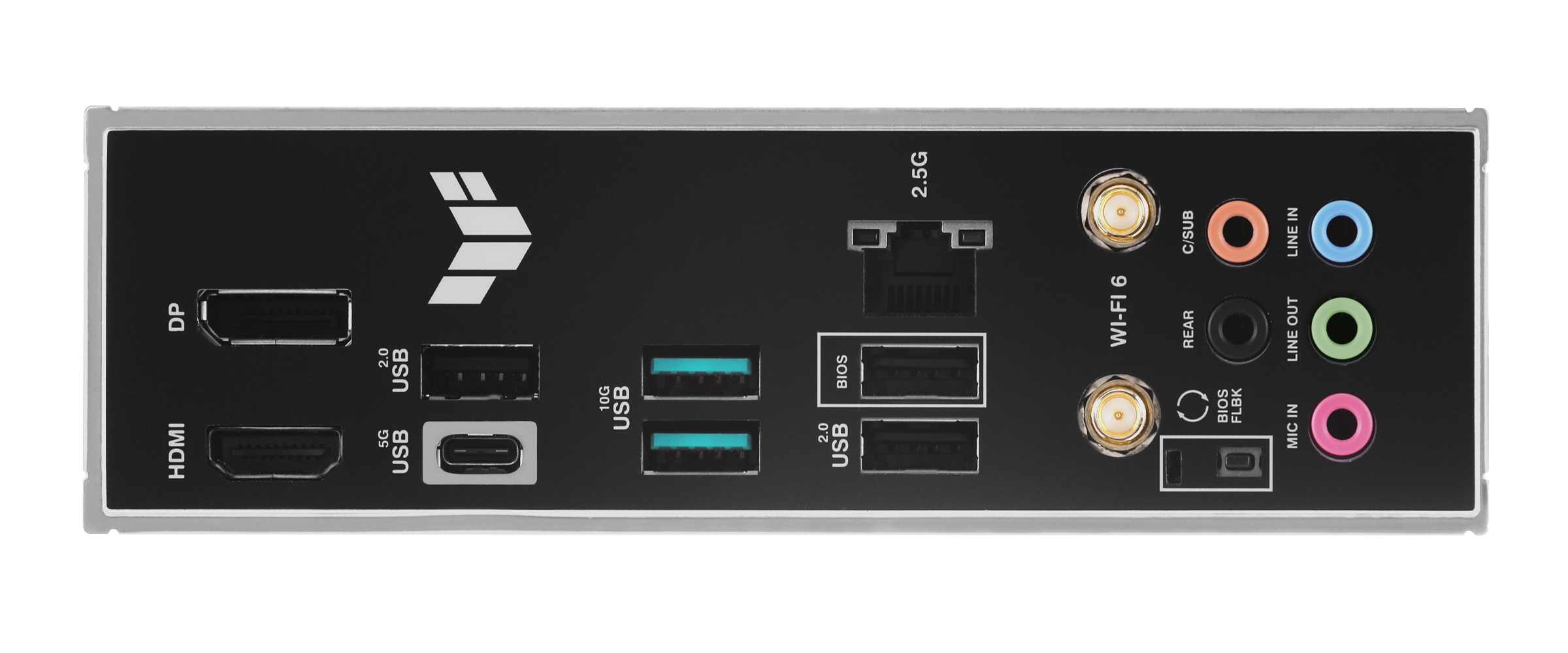

Back Panel I/O Ports
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
1 x USB 3.2 Gen 1 (5G) port (1 x USB Type-C®)
3 x USB 2.0 ports (3 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function

Special Features
ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
ESD Guards
TUF LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Pre-mounted I/O shield
SafeDIMM
Aura Sync
Aura RGB header
Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 4
Power Saving
Two-Way AI Noise Cancellation
AI Suite 3
TurboV EVO
DIGI+ VRM
PC Cleaner
TUF GAMING CPU-Z
MyASUS
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
