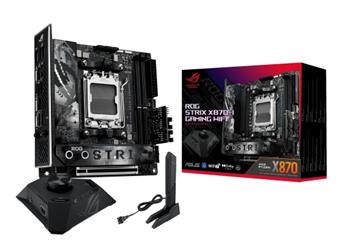

ASUS ROG STRIX X870-I GAMING WIFI

Popis produktu:

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset
AMD X870

Memory
2 x DIMM slots, max. 96GB, DDR5
ECC and Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1 x HDMI™ port
2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
1 x PCIe 5.0/4.0/3.0 x16 slot(s)
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage
Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 7000 & 8000 & 9000 Series Desktop Processors
M.2_1 slot (Key M), type 2280  (supports PCIe 5.0 x4 mode
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10, and AMD Ryzen™ 9000 Series Desktop Processors additionally support RAID 5.
Install ROG FPS Card to support 2 x SATA 6Gb/s ports.

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth® Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps  transfer rate.
Bluetooth® v5.4
Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require  SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB
Rear USB (Total 10 ports)
2 x USB4® (40Gbps) port(s)  (2 x USB Type-C®)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 3 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
* USB Type-C® power delivery output: max. 5V/3A
ROG STRIX HIVE II(Total 2 ports)
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
ROG FPS Card (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0 ports

Audio
ROG Strix Hive II Audio Features
ROG Hyper-Grounding Technology
E3 DAC
Silver-plated audio jacks
Dedicated audio PCB layers

Back Panel I/O Ports
2 x USB4® (40Gbps)  (2 x USB Type-C®)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II)
3 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
2 x M.2 slots (Key M)
1 x USB 10Gbps connector (support(s) USB Type-C® )
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x Addressable Gen 2 header(s)
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C® connectors to install ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports

Special Features
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum backplate
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
ROG STRIX HIVE II
1 x USB Type-C® connects to motherboard
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
1 x Headphone jack with mic in
1 x Power button
1 x FlexKey button
1 x Volume control knob with mute button
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Dynamic OC Switcher

Accessories
1 x Panel cable
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
1 x ROG FPS Card
ROG STRIX HIVE II
1 x ROG STRIX HIVE II
1 x USB Type-C® power connection cable
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 rubber package(s)
1 x Quick start guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
Mini-ITX Form Factor
6.7 inch x 6.7 inch (17 cm x 17 cm)
