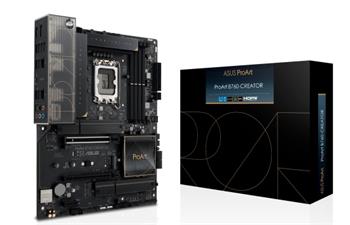

ASUS PROART B760-CREATOR

Popis produktu:

CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 10 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to www.asus.com for CPU support list.
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® B760 Chipset

Memory
4 x DIMM, Max. 128GB, DDR5 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Supported memory types, data rate (speed), and number of DRAM modules vary devpending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/.

Graphics
1 x HDMTM port
1 x DisplayPort port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Support 4K@60Hz as specified in HDMI 2.1.
Support max. 8K@60Hz as specified in DisplayPort 1.4.

Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.

Storage
Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.

Ethernet
1 x Realtek 2.5Gb Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)*
Wi-Fi module is sold separately.

USB
Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2 (10G) Type-C® port
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C® with 60W PD/QC4+)
1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Premium audio capacitors
Dedicated audio PCB layers
Audio cover
Unique de-pop circuit

Back Panel I/O Ports
1 x USB 3.2 Gen 2 (10G) port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Realtek  2.5Gb Ethernet port
1 x Intel® 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PD_12V Power connector
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C® with 60W PD/QC4+)
1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™  header

Special Features
ASUS 5X PROTECTION III
DIGI+ VRM (- Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
LANGuard
Overvoltage Protection
SafeSlot
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-Connector
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
Flexible M.2 heatsink
VRM heatsink design
ASUS EZ DIY
ProCool
Pre-mounted I/O shield
AURA Sync
AURA RGB header
Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
AURA Creator
AURA Sync
Fan Xpert 4
Power Saving
Two-Way AI Noise Cancelation
AI Suite 3
Performance And Power Saving Utility
DIGI+ VRM
Turbo app
ASUS CPU-Z
IT Management software supported
ASUS Control Center Express(ACCE)
ProArt Creator Hub
CreationFirst
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

Operating System
Windows® 11 64-bit, Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
