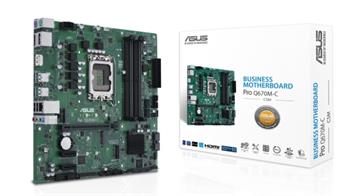

ASUS PRO Q670M-C-CSM

Popis produktu:

CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to www.asus.com for CPU support list.
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® Q670 Chipset

Memory
4 x DIMM, Max. 128GB, DDR5 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Optimem II
Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics
2 x DisplayPort
1 x HDMI®
Graphics specifications may vary between CPU types.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel® Q670 Chipset
2 x PCIe 3.0 x1 slots
Please check PCIe bifurcation table in support site.

Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
Intel® 12th Gen processors support PCIe 4.0 x4 mode
Intel® Q670 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi module is sold separately.

USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 7 ports
1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback "
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
2 x DisplayPort
1 x HDMI® port
3 x Audio jacks
1 x Intel® 1Gb Ethernet
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port

Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x DIS ME jumper
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x Speaker header
1 x 10-1 System Panel header

Special Features
ASUS EZ DIY
Box Headers
Bespoke Motherboard Design & Business Focused Features
ASUS Boot Defender
Q-LED Core
ASUS Self Recovering BIOS
ASUS Event Log
ASUS Commercial BIOS kit
Anti-Moisture
24/7 Reliability
Overcurrent Protection
TPM 2.0 IC onboard
Software Features

ASUS Exclusive Software
IT Management software supported
ASUS Control Center Express(ACCE)

BIOS
256 Mb Flash ROM
Manageability
WOL by PME, PXE
Accessories

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
microATX
24.4cm x 24.4cm
