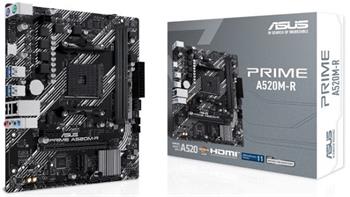

ASUS PRIME A520M-R

Popis produktu:

ASUS MB Sc AM4 PRIME A520M-R, AMD A520, 2xDDR4, 1xHDMI, mATX

CPU
AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
Refer to www.asus.com for CPU support list.

Chipset - AMD A520 Chipset

Memory
2 x DIMM slots, max. 64GB, DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory
Dual channel memory architecture
ECC memory (ECC mode) support varies by CPU.
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Graphics
1 x HDMI™ port
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
1 x PCIe 3.0 x1 slot

Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

USB
Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port

Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design

Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
- EZ update
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS - 128 Mb Flash ROM, UEFI AMI BIOS
Manageability - WOL by PME, PX
Operating System´- Windows® 11, Windows® 10 64-bit
Form Factor
micro-ATX Form Factor  23.6 cm x 19.3 cm

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x M.2 anchor
Documentation
1 x Quick start guide
